Multi-Cluster

You can register additional clusters to ale and manage them.

ale supports connecting not only Kubernetes clusters from major CSPs but also Generic Kubernetes clusters. Depending on how the agent is executed, you can register and manage clusters using the following steps.

Running on Node

If you’re running ale on AWS EC2, follow the steps below up to the point of installing the ale-run package.

• Install ale on AWS EC2

1. Run the following commands to install the ale-run package.

   mkdir ale-run
   cd ale-run


   npm i @ale-run/runtime@latest


2. Run the following command to start the ale agent in agent mode.

   pm2 start "npx aled agent -c [Kubernetes cluster name]" --name "ale-agent" --watch


3. Once logs from pm2 appear as shown below, the agent is successfully running. You can find the agent token required for cluster registration in the log message starting with `agent token is...`.

   pm2 log ale-agent


   ...
   0|ale-agent  | [INFO] [runtime:init] using embedded mongodb "mongodb://127.0.0.1:27017/ale" at "/home/ubuntu/.ale/mongodb"
   0|ale-agent  | [INFO] [runtime:init] using cluster: default
   0|ale-agent  | [INFO] [k8s] KubernetesClusterDriver initialized with agent {"connection":{"context":"default","namespace":"ale"},"stat":{"db":{"url":"mongodb://127.0.0.1:27017/","dbName":"ale"}}}
   0|ale-agent  | [INFO] [k8s] ConfigContext initialized with {"connection":{"context":"default","namespace":"ale"},"stat":{"db":{"url":"mongodb://127.0.0.1:27017/","dbName":"ale"}}}
   0|ale-agent  | [INFO] [k8s] connect k8s to "default"
   0|ale-agent  | [INFO] [k8s] [agent] cluster agent initialized
   0|ale-agent  | [INFO] [runtime:agent] Ale Agent is initialized with config
   0|ale-agent  | [INFO] [agent-server] token loaded from secret "ale/agent-secrets"
   0|ale-agent  | [INFO] [runtime:init] agent httpsd is listening at 0.0.0.0:9801
   0|ale-agent  | [INFO] [runtime:init] agent token is cat-c5a7cea7b25709a0863ac64a80155d46.930d450e5893040b54820c83
   0|ale-agent  | [INFO] [k8s] config loaded from cluster from "ale/agent-config"
   0|ale-agent  | [INFO] [stat] stat controller init {"collector":{"prefix":"ale"},"db":{"url":"mongodb://127.0.0.1:27017/","dbName":"ale"},"connection":{"context":"default","namespace":"ale"}}
   0|ale-agent  | [INFO] [stat] connect k8s to "default"
   0|ale-agent  | [INFO] [stat] stat watcher started


   If database conflicts occur during execution or you need to reset the configuration, run the following command to delete existing ale data and restart.

   rm -r ~/.ale

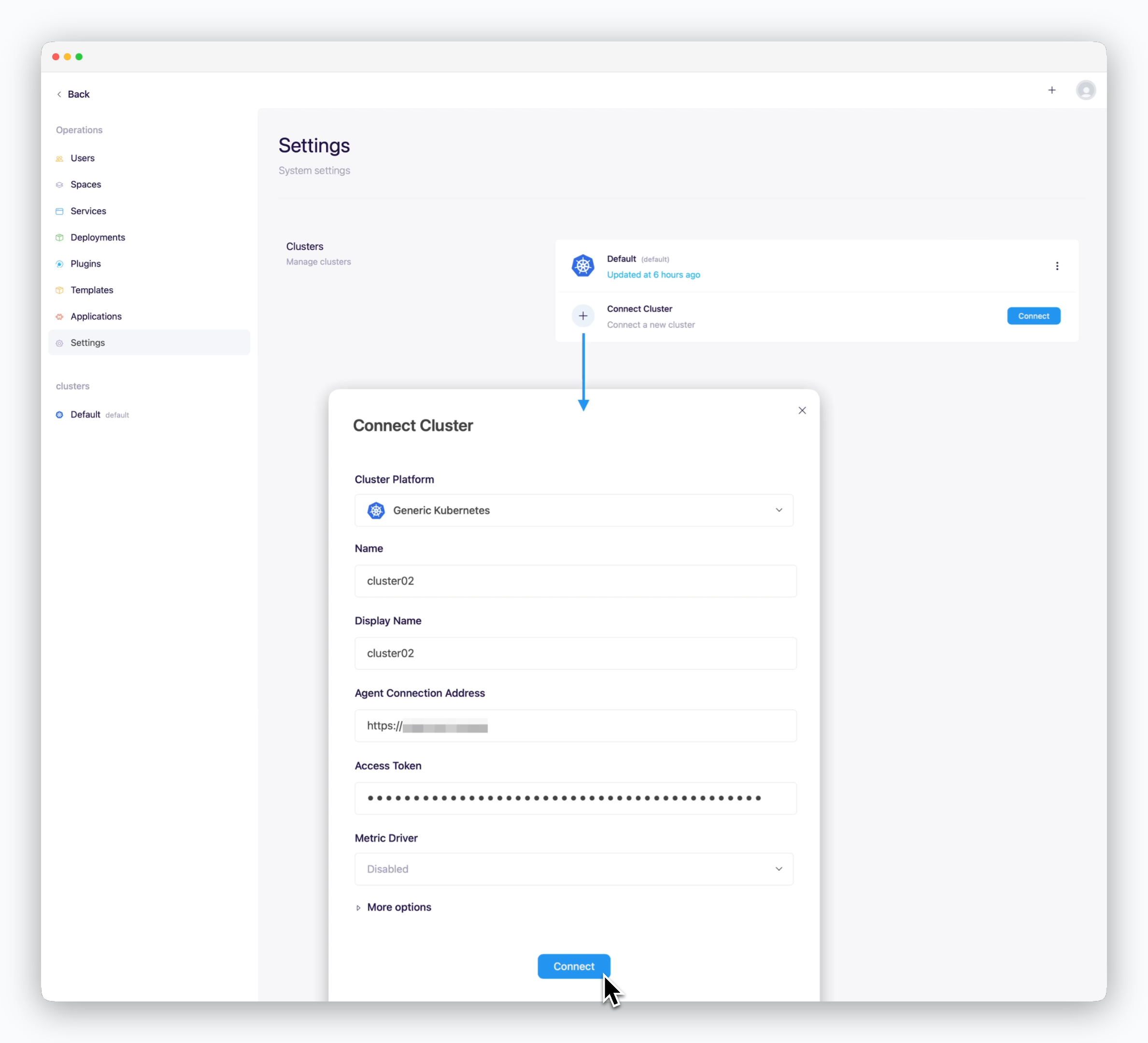

4. Click 'Connect' at the bottom of the settings page in the management system, and enter the following details.



   • Cluster Platform: Generic Kubernetes
   • Name, Display Name: Name to be displayed on the dashboard
   • Agent Connection Address
   • Access Token: Token retrieved from the logs in the previous step

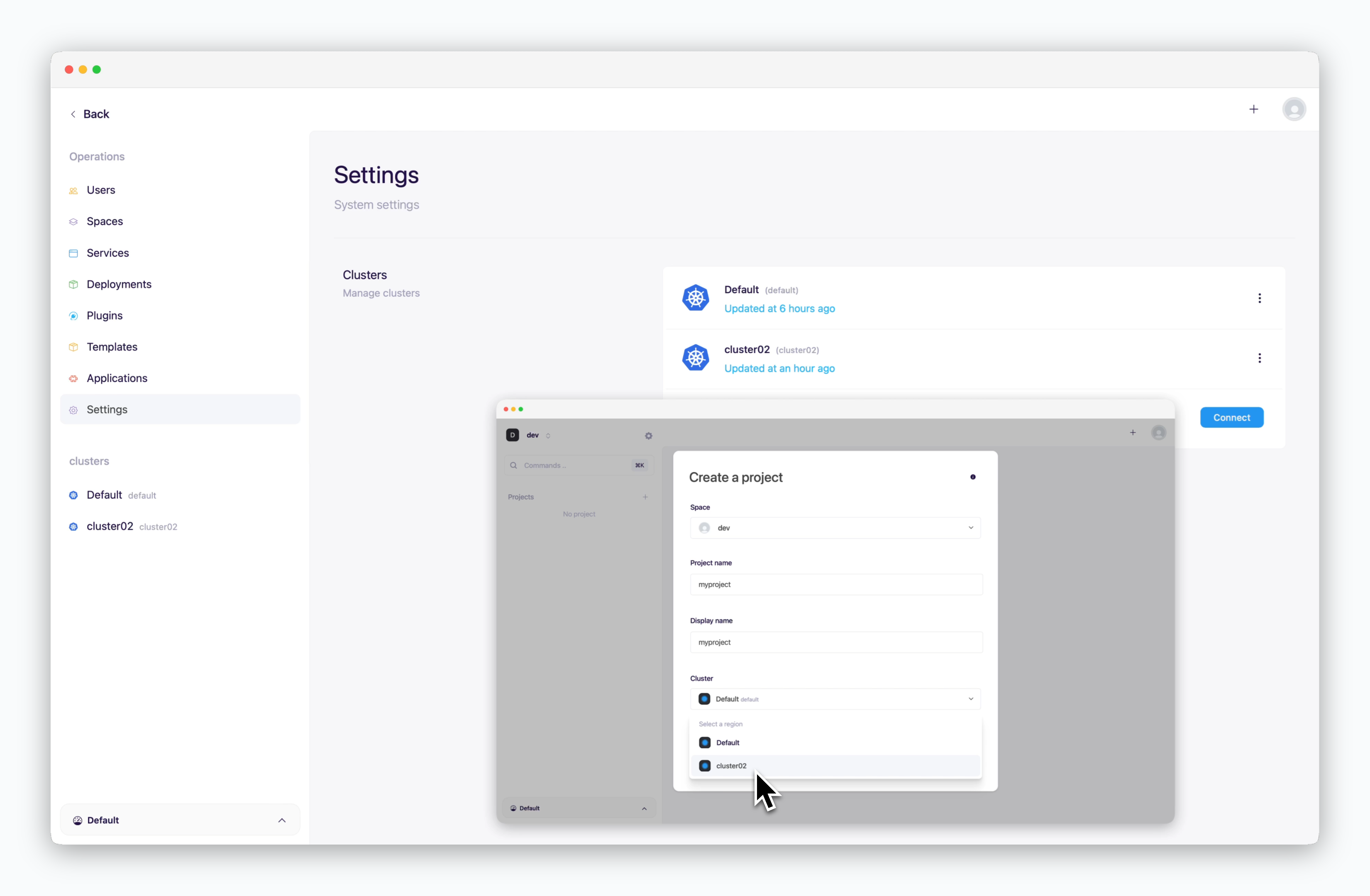

   Connected clusters can be selected as the target deployment cluster when creating projects or deployment environments for service deployment in the dashboard.



Running on Kubernetes Pod

To install Ale on a Kubernetes cluster, refer to the following pages:

• AWS EKS
• GCP GKE

1. Retrieve the agent's external IP

   AWS EKS - hostname

   kubectl get svc \
       -n ale \
       ale-agent-lb \
       -o jsonpath='{.status.loadBalancer.ingress[0].hostname}' \
   | xargs -I{} echo "https://{}"


2. Retrieve the agent token

   kubectl get secrets agent-secrets -n ale -o jsonpath='{.data.AGENT_TOKEN}' | base64 --decode


3. Click 'Connect' at the bottom of the settings page in the management system, and enter the following details.



   • Cluster Platform: Select the provider of the cluster to connect
   • Name, Display Name: Name to be displayed on the dashboard
   • Agent Connection Address
   • Access Token: Token retrieved from the logs in the previous step

   Connected clusters can be selected as the target deployment cluster when creating projects or deployment environments for service deployment in the dashboard.
