Quick Start

Guide for installing ale locally and deploying an application to a local K8s cluster.

Node.js version 20 or higher is required to use ale.

---

Cluster Setup

Docker Desktop

• Visit the Docker Desktop website and download the installation file that matches your OS and architecture. After completing the installation, verify that Docker was installed correctly by entering the following command in your terminal:

docker version

Setting up the Kubernetes Cluster

1. Open Docker Desktop settings, select Kubernetes from the left menu. Check Enable Kubernetes and click Apply & restart at the bottom.

2. Run the following command to ensure kubectl commands are applied to the Kubernetes cluster created by Docker Desktop:

kubectl config use-context docker-desktop

Switched to context "docker-desktop".

3. Run the following command in your terminal to verify that the cluster is running properly. If the STATUS is not Ready or if the output below is not displayed, the Kubernetes cluster is not available for use, and you should check the context and Docker Desktop status.

kubectl get node

NAME             STATUS   ROLES           AGE   VERSION
docker-desktop   Ready    control-plane   37m   v1.30.2

OrbStack

• Run the following command on macOS with HomeBrew installed:

brew install orbstack

Setting up the Kubernetes Cluster

1. Open OrbStack settings and select the Kubernetes tab. Check both Enable Kubernetes cluster and Expose services to local network devices, then click Apply at the bottom.

2. Run the following command to ensure kubectl commands are applied to the Kubernetes cluster created by OrbStack:

kubectl config use-context orbstack

Switched to context "orbstack".

3. Run the following command in your terminal to verify that the cluster is running properly. If the STATUS is not Ready or if the output below is not displayed, the Kubernetes cluster is not available for use, and you should check the context and OrbStack status.

kubectl get node

NAME       STATUS   ROLES                  AGE     VERSION
orbstack   Ready    control-plane,master   7m14s   v1.29.3+orb1

kind

kind requires go version 1.16 or higher to be installed. Download and install the appropriate file for your operating system from this page, then run the following command to add go to your shell’s PATH:

zsh

echo 'export PATH=$PATH:$HOME/go/bin' >> ~/.zshrc && source ~/.zshrc

• Run the following command in your terminal:

go install sigs.k8s.io/kind@v0.25.0

Setting up the Kubernetes Cluster

1. Enter the following command in your terminal:

cat <<EOF | kind create cluster --name kind --config=-
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
  - role: control-plane
  - role: worker
  - role: worker
EOF

2. Run the following command to ensure kubectl commands are applied to the K8s cluster created by kind:

kubectl config use-context kind

Switched to context "kind".

3. Run the following command in your terminal to verify that the cluster is running properly. If the STATUS is not Ready or if the output below is not displayed, the Kubernetes cluster is not available for use, and you should check the context and the status of running containers.

kubectl get node

NAME                 STATUS   ROLES           AGE   VERSION
kind-control-plane   Ready    control-plane   19m   v1.31.2
kind-worker          Ready    <none>          19m   v1.31.2
kind-worker2         Ready    <none>          19m   v1.31.2

Install and Run ale

1. Enter the following commands to install the `ale-run` package:

   mkdir ale-run
   cd ale-run


   npm i @ale-run/runtime@latest


2. Run the following commands to install the Nginx Ingress Controller:

   kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.11.2/deploy/static/provider/cloud/deploy.yaml


   kubectl delete -A ValidatingWebhookConfiguration ingress-nginx-admission


   kubectl patch ingressclass nginx --type='merge' -p '{"metadata": {"annotations": {"ingressclass.kubernetes.io/is-default-class": "true"}}}'


3. Run the following command to install the Metrics Server:

   kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml


4. Enter the following command to run ale in development mode:

   npx aled dev


5. Select the cluster where you want to deploy services using ale. The cluster list is retrieved from the contexts registered in `~/.kube/config`.

   ? Select the k8s cluster to use. › Select the k8s cluster to use.
       No Cluster
       orbstack
   ❯   docker-desktop


   When you see logs like the following, the setup is complete:

   ...
   [INFO] [plugin:cloudtype-apps] plugin @cloudtype/apps is installed {}
   [INFO] [plugin:cloudtype-apps] plugin @cloudtype/apps is activate {}
   [INFO] [pde:init] plugin "@cloudtype/apps" loaded!
   [INFO] [k8s] KubernetesClusterType initialized with agent {"connection":{"context":"docker-desktop","namespace":"ale-pde"},"stat":{"db":{"url":"mongodb://127.0.0.1:64000/","dbName":"ale-pde"}}}
   [INFO] [k8s] ConfigContext initialized with {"connection":{"context":"docker-desktop","namespace":"ale-pde"},"stat":{"db":{"url":"mongodb://127.0.0.1:64000/","dbName":"ale-pde"}}}
   [INFO] [k8s] connect k8s to "docker-desktop"
   [INFO] [k8s] [agent] cluster agent initialized
   [WARN] [k8s] ConfigMap.get ale-pde agent-config
   [INFO] [pde:agent] Ale Agent is initialized with config
   [INFO] [pde:init] Ale Agent httpsd is listening at 127.0.0.1:9801
   [INFO] [k8s] config loaded from cluster from "ale-pde/agent-config"
   [INFO] [stat] stat controller init {"collector":{"prefix":"ale"},"db":{"url":"mongodb://127.0.0.1:64000/","dbName":"ale-pde"},"connection":{"context":"docker-desktop","namespace":"ale-pde"}}
   [INFO] [stat] connect k8s to "docker-desktop"
   [INFO] [stat] stat watcher started


   If you encounter database conflicts during execution, delete existing ale data using the following command and restart:

   rm -r ~/.ale-dev


By integrating your local environment with GitHub, you can deploy source code from GitHub repositories.

GitHub Integration for Local Environment

1. Create GitHub Apps

After logging into GitHub, go to Settings > Developer Settings > GitHub Apps and click New GitHub App.

1-1. Provide Basic Information

Enter the following information to create your GitHub App:

• GitHub App name: Name for your GitHub App
• Homepage URL
  • URL where GitHub OAuth will be applied
  • Local access address: http://localhost:9001
• Callback URL (Add with Add Callback URL)
  • http://localhost:9009/oauth/github/callback
  • http://localhost:9009/oauth/github/connect/callback

The GitHub App name entered here will be used when registering GitHub OAuth with ale.

Since this is a local environment, use http instead of https, and localhost:9009 is ale’s API endpoint address.

1-2. Disable Webhook

Uncheck Active in the Webhook section to disable it.

1-3. Grant Permissions and Create APP

Grant the following permissions in the Permission section and click Create GitHub App to create your APP:

Repository permissions (9)

• Read and Write
  • Actions
  • Administration
  • Commit statuses
  • Contents
  • Deployments
  • Issues
  • Pull requests
  • Workflows
• Read-only
  • Metadata

Organization permissions (2)

• Read and Write
  • Administration
• Read-only
  • Members

Account permissions (1)

• Read-only
  • Email addresses

2. Get GitHub App Information

To add GitHub OAuth to ale, you’ll need 4 ID/Key values in addition to the GitHub App Name:

• App ID
• Client ID
• Client Secret
• Private Key

2-1. App ID and Client ID

After creating the App with the granted permissions, you can view the App ID and Client ID.

2-2. Client Secret

On the same screen, click Generate a new client secret to create and view the Client Secret.

2-3. Private Key

Click Generate a private key at the bottom of the screen to download the pem file.

3. Integrate GitHub App in ale

Enter http://localhost:9001 in your browser’s address bar to access the operation system, then go to Settings > Authentication > GitHub dropdown. Enter the values obtained from the previous steps into each field and click Apply.

• APP_NAME: GitHub App name
• APP_ID: App ID
• CLIENT_ID: Client ID
• CLIENT_SECRET: Client secret
• APP_PRIVATE_KEY: Private key pem file value

Access Dashboard

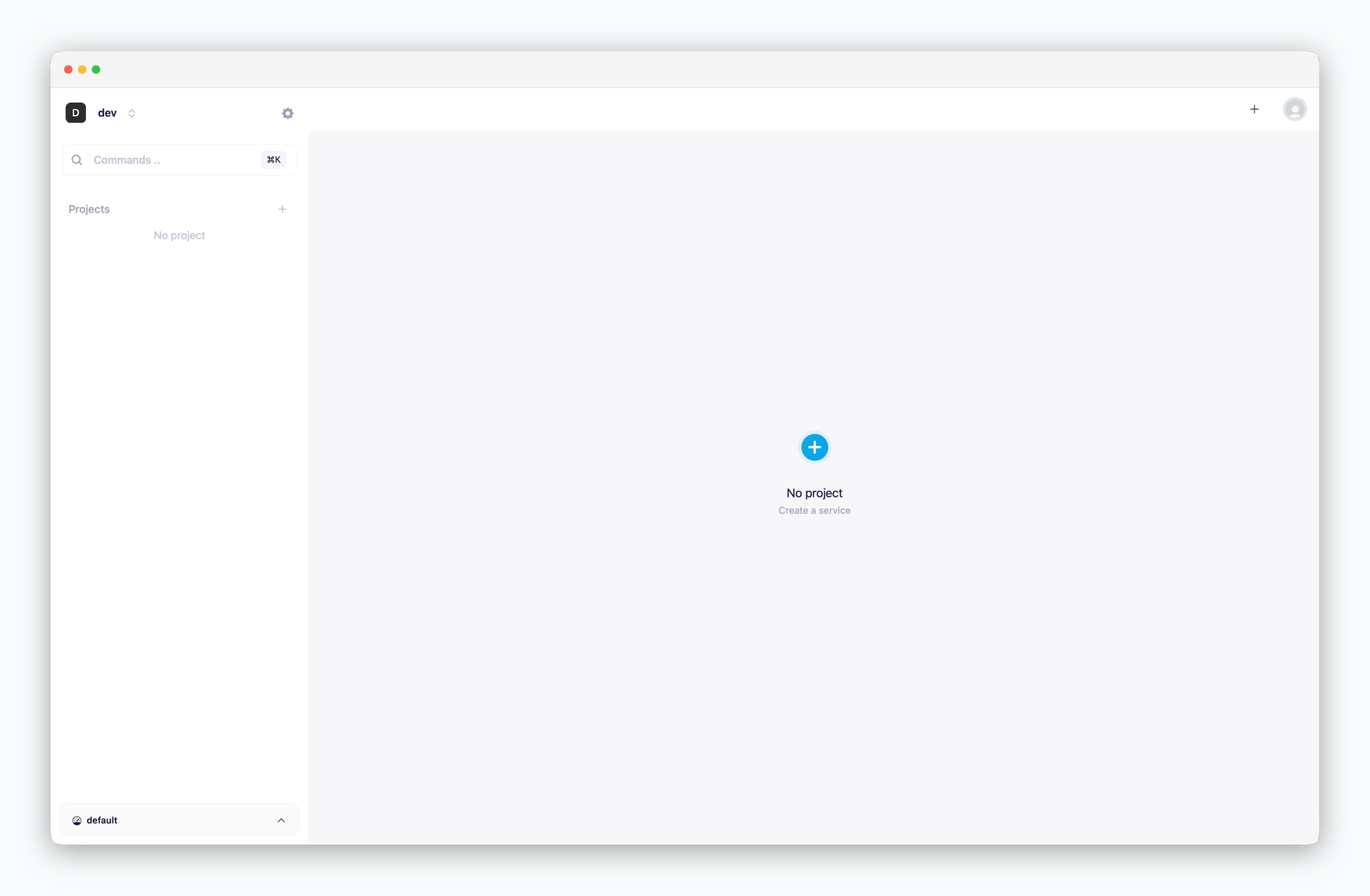

Go to http://localhost:9001. On first access, you’ll be connected to the default @dev space.

Accessing the operations system

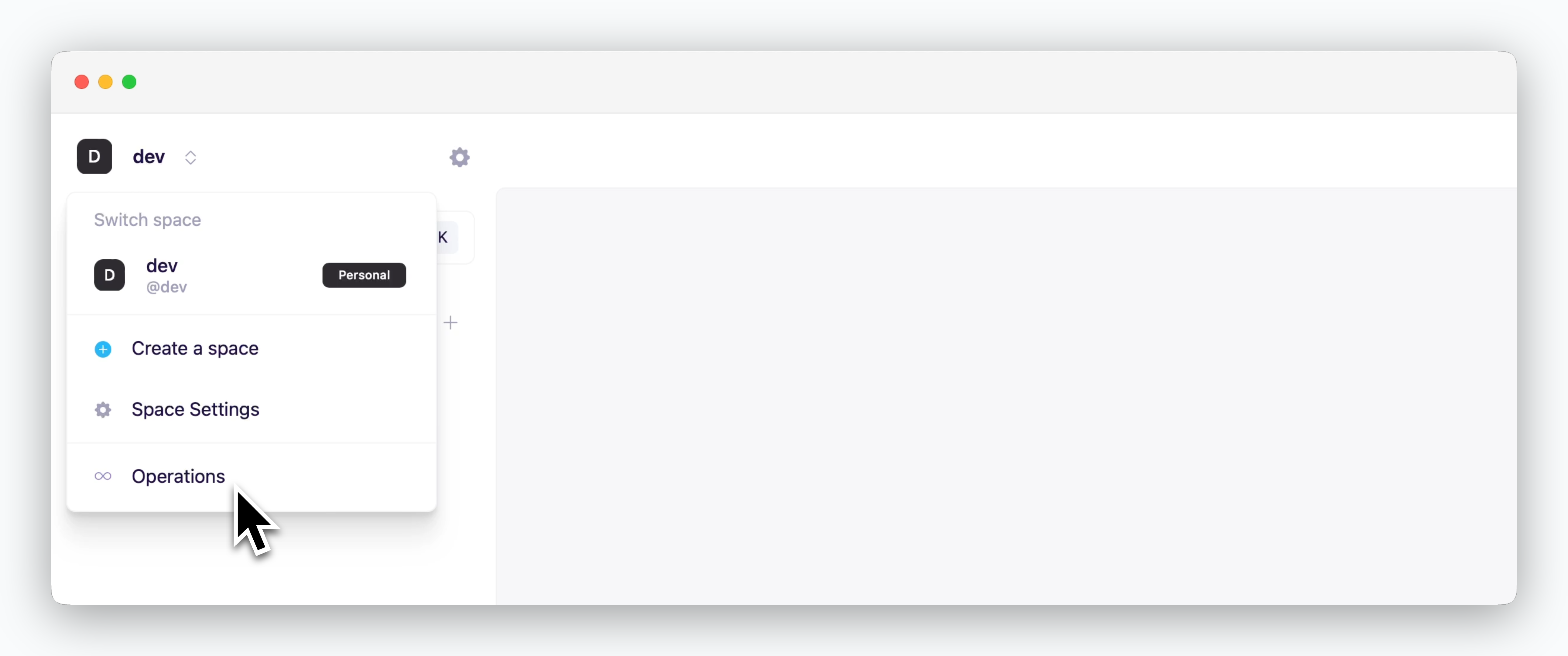

You can access the operation system by clicking the space name in the top left of the dashboard and selecting the operation system.

Deploy

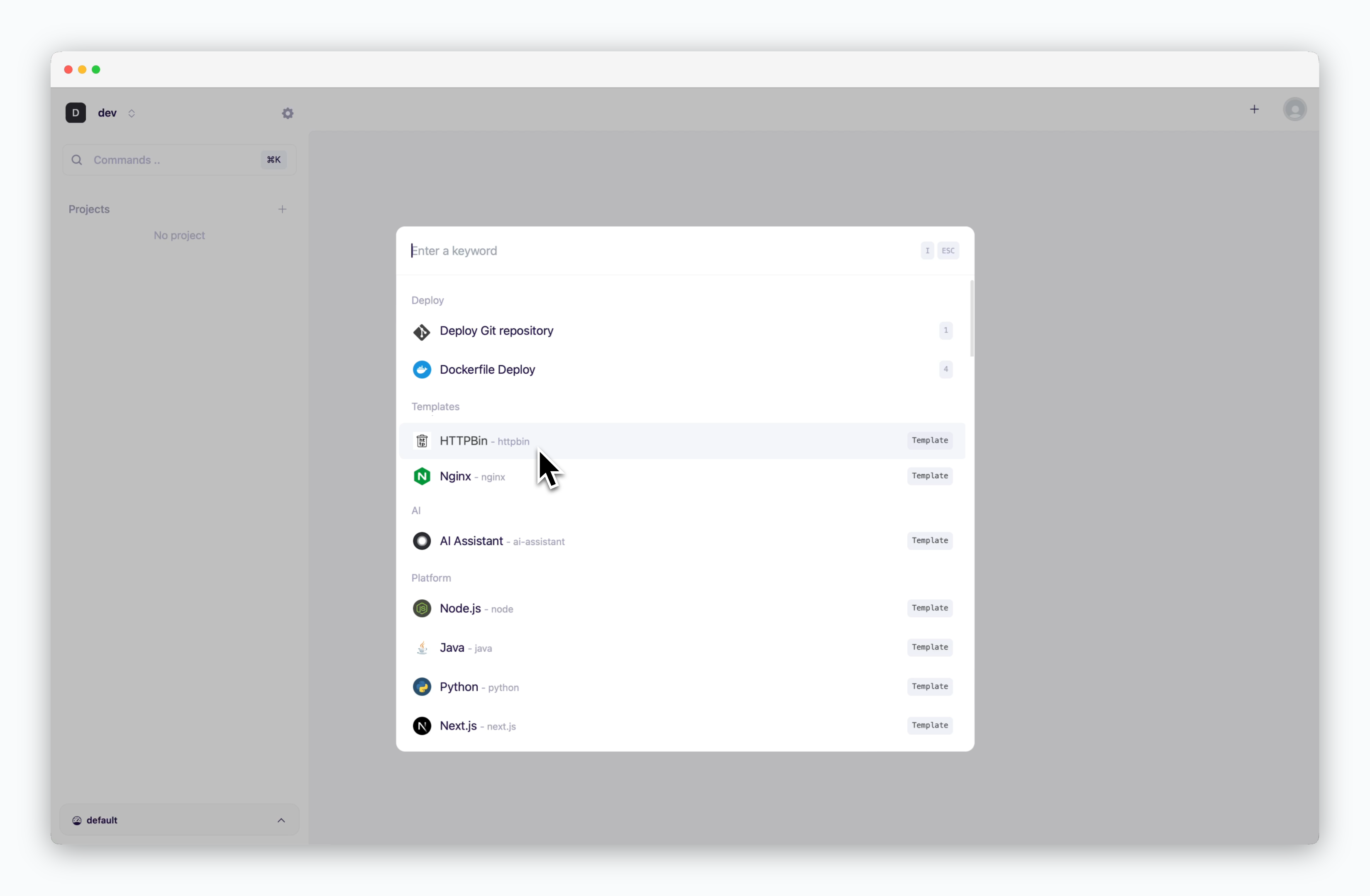

On the dashboard, click or ⌘ + K to open the deployment modal, then select the HTTPBin template.

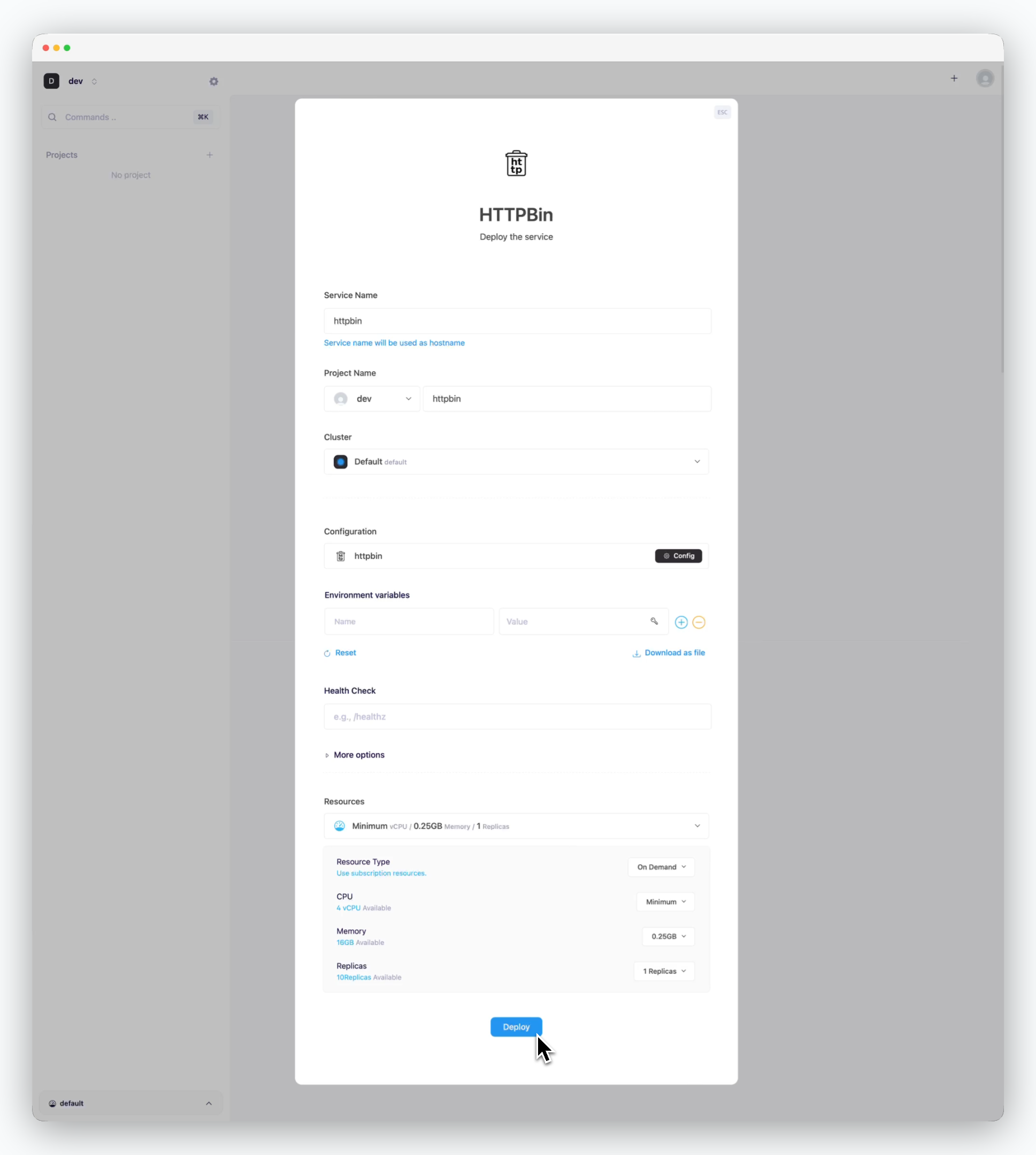

Without changing any settings, click Deploy at the bottom.

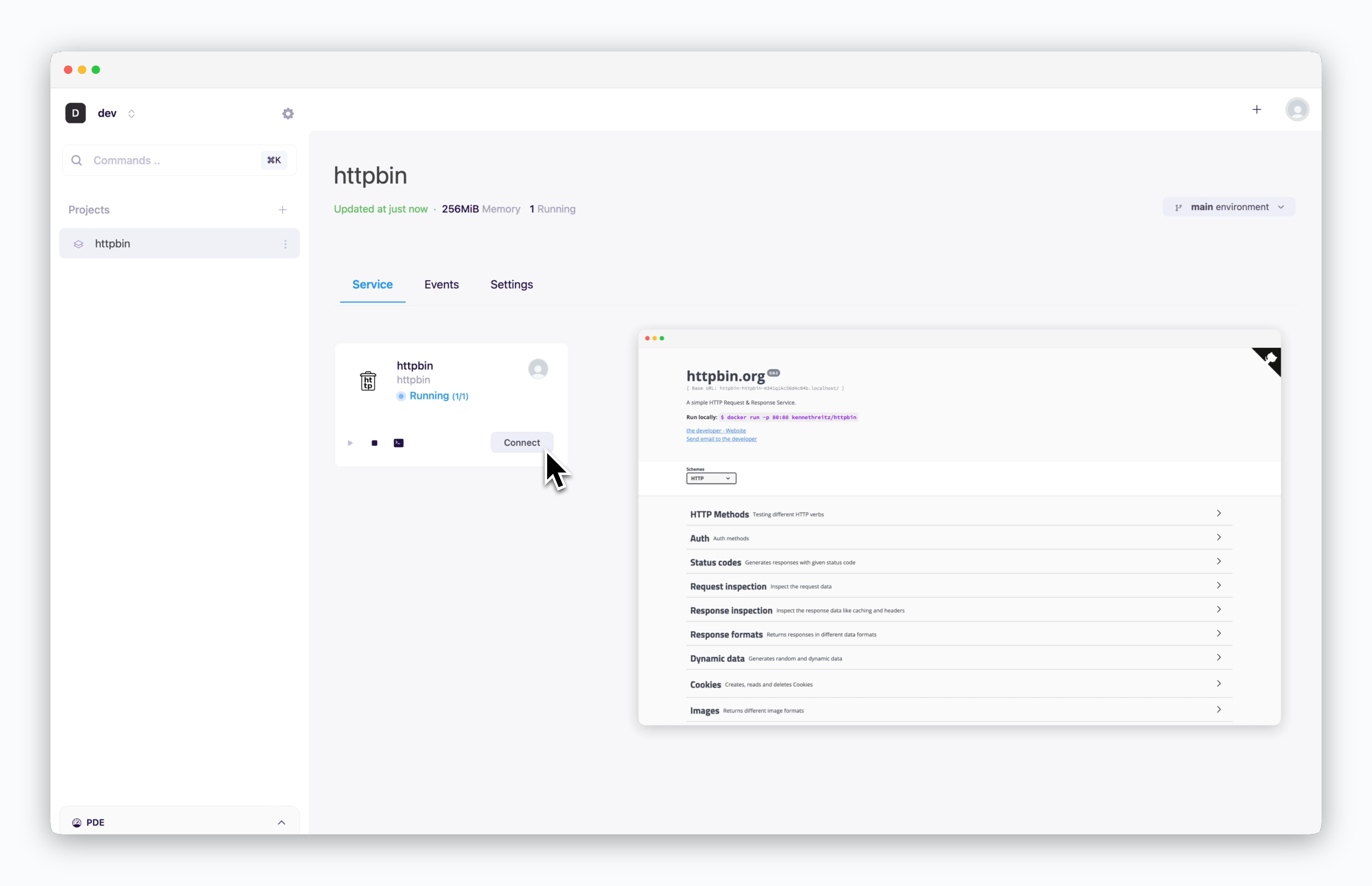

Once deployment is complete, you can access the preview page.

You can deploy GitHub repositories by integrating your local environment with GitHub or deploy private repositories using SSH authentication. For general deployment with ale, refer to the Deploying with ale page.
