TLS & Ingress Configuration

Guide for applying SSL/TLS certificates using Cert Manager.

TLS certificates are automatically applied to the preview URLs and custom domains of services deployed with ale.

---

Cert Generator Install & Issue

1. Set the values used in the certificate generation script as environment variables.

   export AWS_REGION=<AWS Region>
   export AWS_DOMAIN=<Route53 Domain>
   export AWS_HOSTED_ZONE_ID=<Route53 Hosted Zone ID>
   export ACME_EMAIL=<Certificate Issuance Email>


   AWS Route53 Hosted Zone ID



   You can find the Hosted Zone ID in Route53 > Hosted Zones > Hosted Zone Details.

2. Install the cluster certificate generator using the following command.

   cat <<EOF | kubectl apply -f -
   apiVersion: v1
   kind: Secret
   metadata:
     name: aws-secret-access-key
     namespace: cert-manager
   type: Opaque
   stringData:
     aws-secret-access-key: $AWS_SECRET_ACCESS_KEY
   ---
   apiVersion: cert-manager.io/v1
   kind: ClusterIssuer
   metadata:
     name: ale-issuer
     namespace: cert-manager
   spec:
     acme:
       email: $ACME_EMAIL
       server: https://acme-v02.api.letsencrypt.org/directory
       privateKeySecretRef:
         name: ale-issuer
       solvers:
         - http01:
             ingress:
               class: nginx
         - dns01:
             route53:
               region: $AWS_REGION
               hostedZoneID: $AWS_HOSTED_ZONE_ID
               accessKeyID: $AWS_ACCESS_KEY_ID
               secretAccessKeySecretRef:
                 name: aws-secret-access-key
                 key: aws-secret-access-key
           selector:
             dnsZones:
               - $AWS_DOMAIN
   EOF


3. Run the following command to issue a certificate.

   cat <<EOF | kubectl apply -f -
   apiVersion: cert-manager.io/v1
   kind: Certificate
   metadata:
     name: ale-app-tls
     namespace: cert-manager
   spec:
     dnsNames:
       - "*.$AWS_DOMAIN"
     issuerRef:
       kind: ClusterIssuer
       name: ale-issuer
     secretName: ale-app-tls
   EOF


Ingress Setup

1. Create an Ingress to access ale using the following command.

   cat <<EOF | kubectl apply -f -
   apiVersion: networking.k8s.io/v1
   kind: Ingress
   metadata:
     name: ale
     namespace: ale
     annotations:
       nginx.ingress.kubernetes.io/whitelist-source-range: 0.0.0.0/0
       cert-manager.io/cluster-issuer: ale-issuer
   spec:
     ingressClassName: nginx
     tls:
       - hosts:
           - app.$AWS_DOMAIN
         secretName: ale-controller-tls
     rules:
       - host: app.$AWS_DOMAIN
         http:
           paths:
             - path: /
               pathType: Prefix
               backend:
                 service:
                   name: ale-controller
                   port:
                     number: 9001
   EOF


2. Use the following command to verify that the certificates have been created and applied. If created successfully, the STATE field should show as valid.

   kubectl get order -n ale \
     | awk '/ale-/{print $1}' \
     | xargs kubectl get order -n ale


   NAME                              STATE   AGE
   ale-controller-tls-1-1997619857   valid   103s


3. If you can access the following URLs, the certificate has been applied successfully. If access fails, check the status of the Cert Manager pod or the Cluster Issuer.

   https://app.[Route53_Domain]


4. Create an administrator account and complete the installation.



   Enter the root domain in the preview domain field.

Cluster Network Configuration

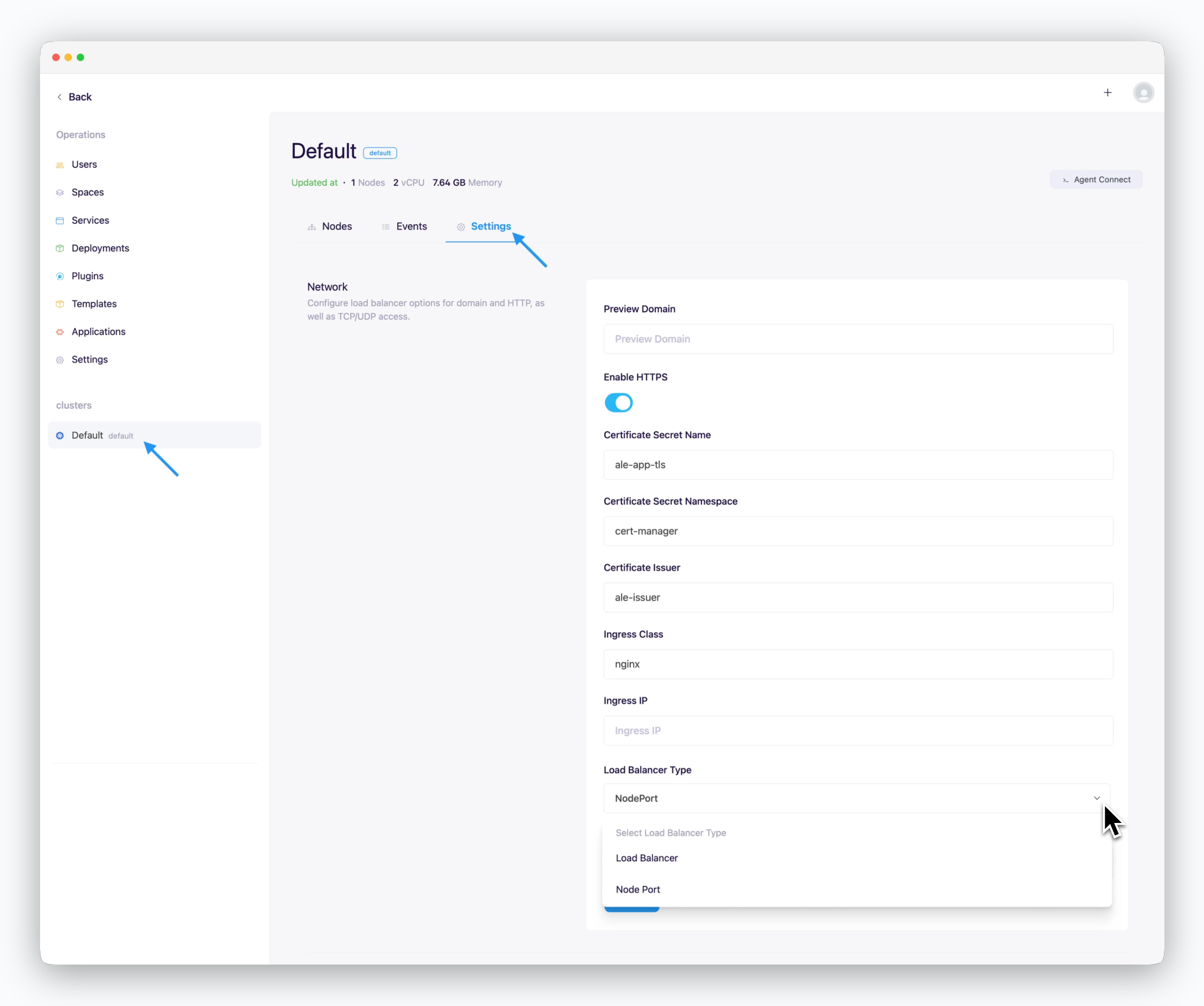

On the cluster page in the Operations System, navigate to the Settings tab and enter the following values in the Network section.

• Preview Domain: Root domain of Route53
• Use HTTPS
  • Checked: Internet environment
  • Unchecked: Intranet/closed network environment
• Certificate Secret Name: ale-app-tls
• Certificate Secret Namespace: cert-manager
• Certificate Issuer: ale-issuer
• Ingress Class: nginx
• Ingress IP: Blank (Auto-detected)
• Load Balancer Type
  • Load Balancer
  • NodePort
• Ingress/Egress Bandwidth: Enter in Mbps

You can access the operations system by clicking the space name in the dashboard.

The operations system menu is only displayed for accounts with access permissions to the operations system.
